Schmidt & Bender Riflescope – PMII 1-8×24 ShortDot Dual CC MDR-T6 1cm ccw MTC

This is a most technically advanced riflescope, since the 1-8×24 PM II ShortDot Dual CC com-bines – in an 8x zoom ratio system – a distinct illuminated red dot in Second Focal Plane with a First Focal Plane tactical reticle. This being said, it can be used as a red dot sight for quick engagement of close targets while the MilDot base reticle can be used for accurate ranging and compensation for hold-offs and hold-under/over. The generous eye box/exit pupil sup-ports fast acquisition on any magnification. These combined features create the most ad-vanced multipurpose Close Combat and mid-range riflescope design.

Features:

• Field of  view m/100 m: 35.3 – 4.9
• Exit pupil mm: 9.8 – 3.0
• Eye  relief  distance mm: 90
• Twilight factor: 3.3 – 13.9
• Optical data dptr.: -3/+2
• Parallax adjustment: 100 m fix (7 m in CC-Mode)
• Adjustment Elevation: 120 cm / 100 m
• Adjustment Windage: ± 60 cm / 100 m

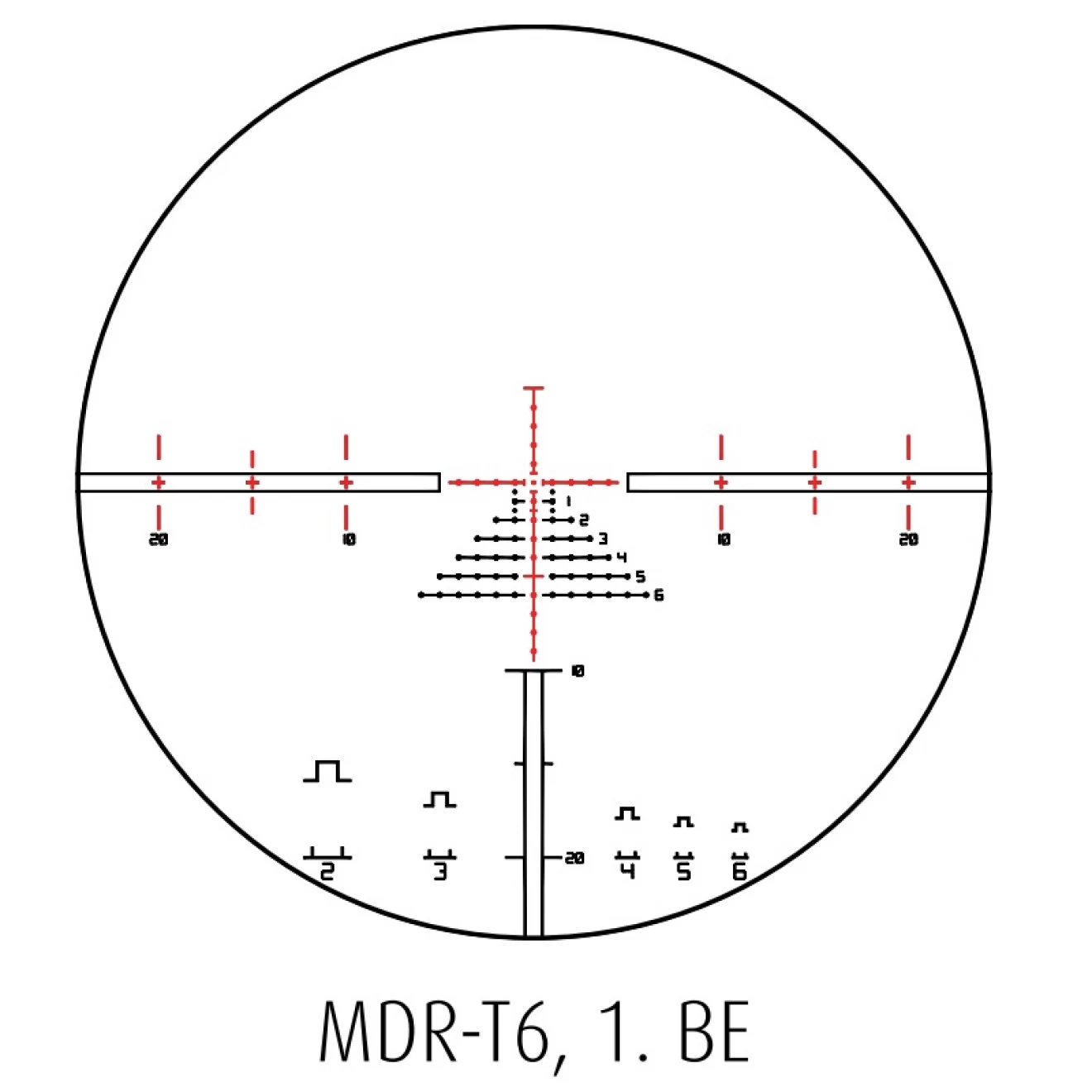

• Reticles: MDR-T6 (FFP)
• Scope Turret Rotation:Counter Clockwise (CCW)
• Length (mm): 293
• Weight (g): 640
